CP Plus CCTV Camera HD Bullet 2.4 MP 30 Mtr Mic illumax CP-URC-TC24PL3C-L-V2

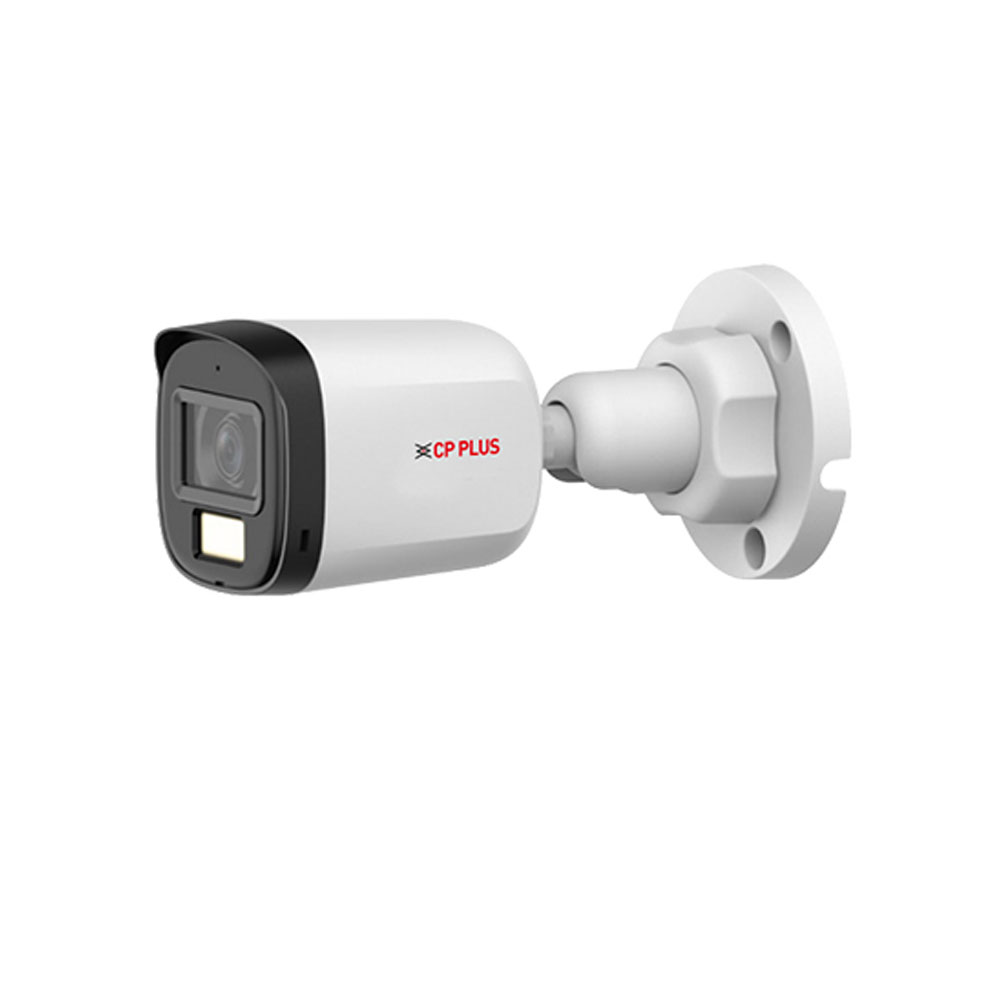

The CP Plus CP-URC-TC24PL3C-L-V2 is an upgraded 2.4 MP HD analog bullet camera from the Illumax series. It features a refined Smart Dual Light system that provides an IR range of 30 metres for standard night vision and a warm light range of 20 metres for full-colour night recording when motion is detected.

Key Specifications

• Resolution: 2.4 MP (1920 × 1080) at 25/30 fps for smooth Full HD video.
• Audio: Built-in high-quality microphone for synchronized audio capture over a single coaxial cable.
• Night Vision Modes: Supports three modes—Smart Dual Light, Warm Light only (Full Color), and IR only (Black & White).
• Lens: Standard 3.6mm fixed lens (80° horizontal view), with 2.8mm and 6mm options available.
• Weatherproofing: IP67-rated housing, making it highly resistant to dust and heavy rain for outdoor use.
• Signal Compatibility: 4-in-1 hybrid technology (CVI, TVI, AHD, and CVBS) for broad DVR compatibility.

V1 vs. V2 Differences

The V2 (Version 2) is optimized for better power efficiency (max 3.3W) and improved Smart Dual Light switching logic compared to the earlier version. It also maintains a more compact physical profile (146.1 mm length) for easier mounting.
