CCTV Power Supply
CP Plus CCTV Power Supply 20A 12V MD200
Availability:
5 in stock

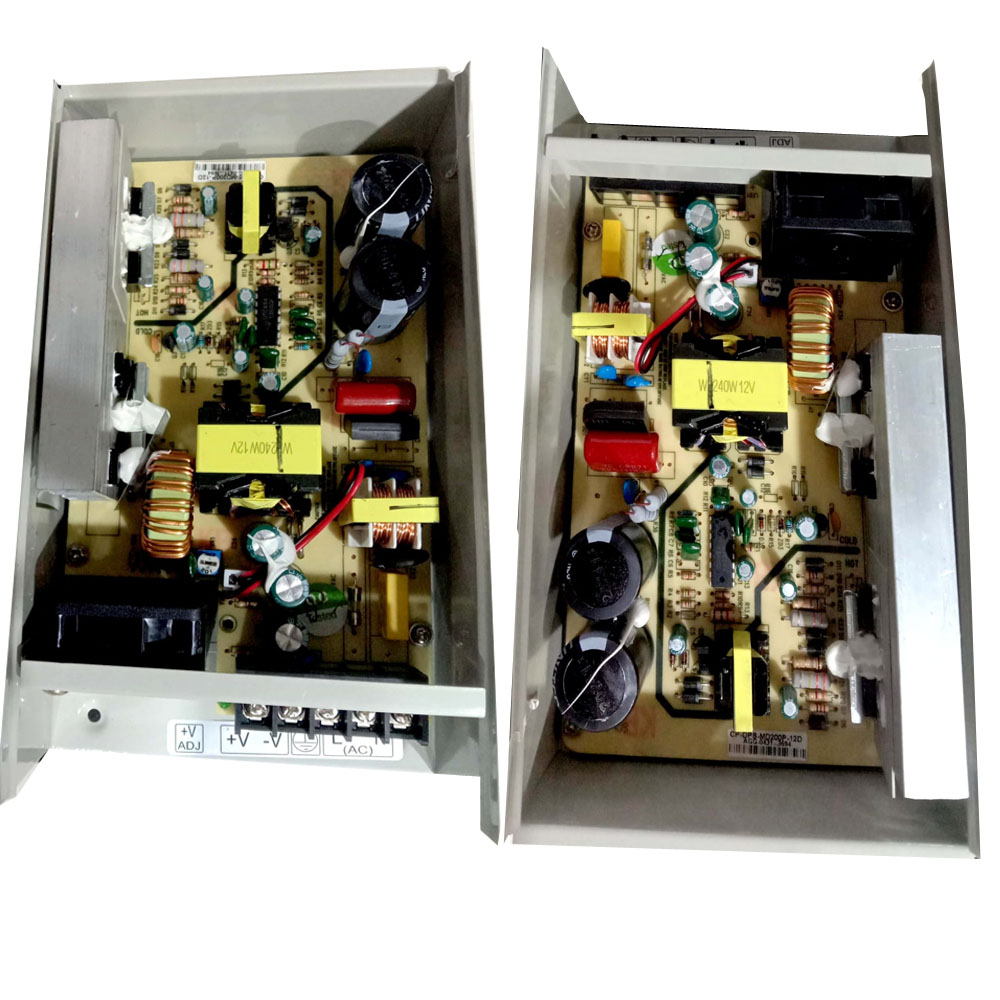

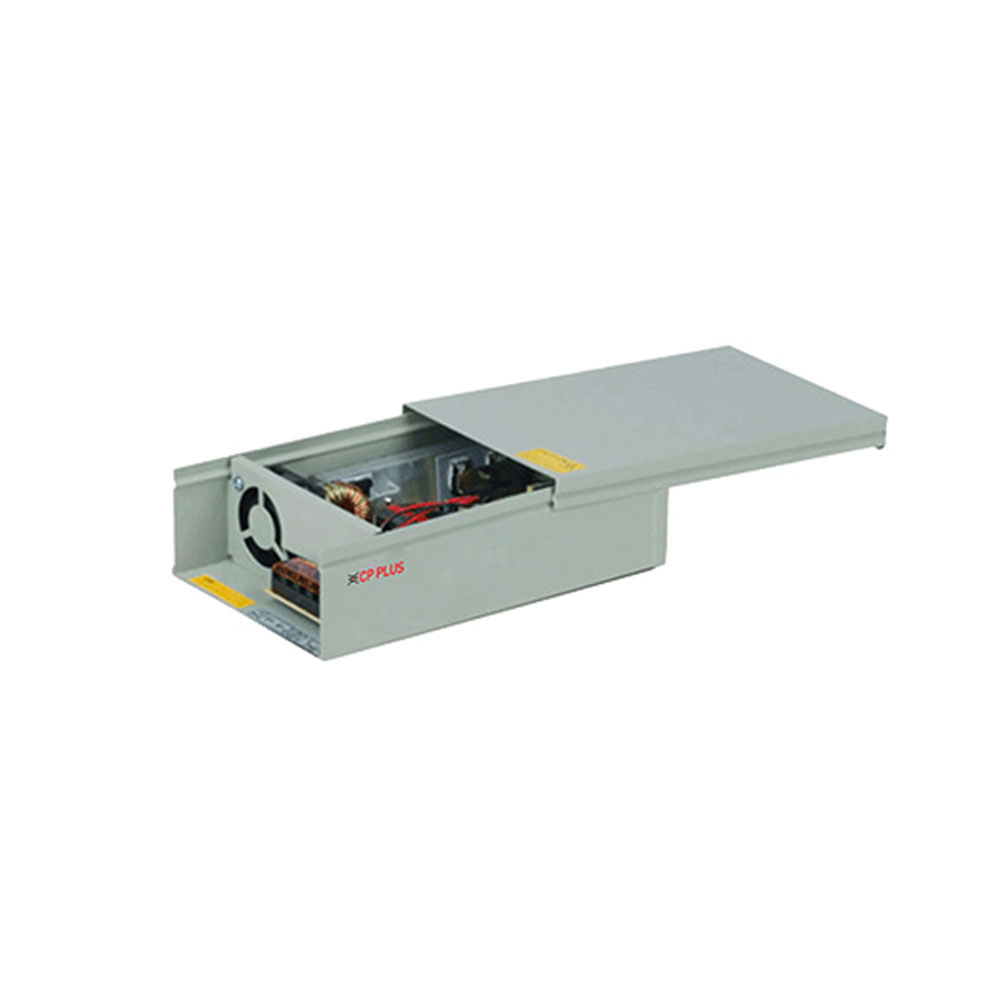

The CP Plus CP-DPS-MD200-12D (often referred to as the MD200) is a high-performance 20A metal case power supply designed to support up to 16 CCTV cameras. It provides a stabilized 12V DC output and is built to handle large surveillance installations with high efficiency and robust safety features.
Key Specifications
- Output: 12V DC with a current range of 0–20A (Total 240W power budget).
- Input Voltage: Wide range support, typically 180~264V AC.
- Protections: Includes built-in safeguards against Short Circuit, Overload, and Overvoltage.
- Cooling: Equipped with a built-in DC ball-bearing fan for forced air cooling to maintain optimal operating temperatures.
- Durability: Features a rain-proof metal housing for improved heat dissipation and longevity.
Top Product Recommendations
- CP PLUS Power Supply (CP-DPS-MD200-12D): This standard metal case model is a highly-rated choice for 16-channel systems.
- CP PLUS Premium Series SMPS (CP-DPS-MD200P-12D): An upgraded version offering consistent stable power for high-end setups.
- CP PLUS Power Supply 20AMP Combo Pack: Includes a UPV power cable for immediate setup.
7 Days Replacement | Brand Warranty By CP Plus All Over India
₹1,399.00 ₹2,250.00
5 in stock
Related products
-
CCTV Power Supply
CP Plus CCTV Power Supply 10A 12V MD100
0 out of 5(0)- CP Plus CCTV Power Supply 12V-10Amp CP-DPS-MD100P-12D
- Input Voltage : 180~264V AC
- Output Voltage : 12V DC
- Current Range : 0~10A
- Ripple & Noise (Max.) : 100mVp-P
- Rated Power : 120W
- Voltage Adj. Range : 11.4~13.2V
- Line Regulation : ±1.0%
- Voltage Tolerance : ±2.0%
- Line Regulation : ±1.0%
- Metal Case Power Supply : 10 Amp
- CP-DPS-MD100P-12D Metal Case Power Supply (Premium Series)
- Wide range of Input voltage 190V~250V AC
- Add more cameras with higher power budget 12V, 10A
- Built-in EMI filter to nullify interference
- Voltage regulator switch for voltage adjustment
- Protections : Overload / Over Voltage / Short Circuit
- Metal Housing for uniform/quick heat dissipation
- Compatible Devices : Security Camera
- Item Model Name : CP-DPS-MD100P-12D
7 Days Replacement | Brand Warranty By CP Plus All Over India
SKU: 4250593411707 -
-
CCTV Power Supply
CP Plus CCTV Power Supply 5A 12V MD50
0 out of 5(0)- CP Plus CCTV Power Supply 5Amp 12V MD50 CP-DPS-MD50P-12D
- Input Voltage : 180~264VAC
- Output Voltage : 12V DC
- Current Range : 0~5A
- Ripple & Noise (Max.) : 100mVp-P
- Rated Power : 60W
- Voltage Adj. Range : 11.4~13.2V
- Voltage Tolerance : ±2.0%
- Line Regulation : ±1.0%
- CP-DPS-MD50P-12D Metal Case Power Supply (Premium Series)
- Wide range of Input voltage 190V~250V AC
- Add more cameras with higher power budget 12V, 5A
- Built-in EMI filter to nullify interference
- Voltage regulator switch for voltage adjustment
- Protections : Overload / Over Voltage / Short Circuit
- Metal Housing for uniform/quick heat dissipation
- Compatible Devices : Security Camera
- Item Model Name : CP-DPS-MD50P-12D
7 Days Replacement | Brand Warranty By CP Plus All Over India
SKU: 000356 -
