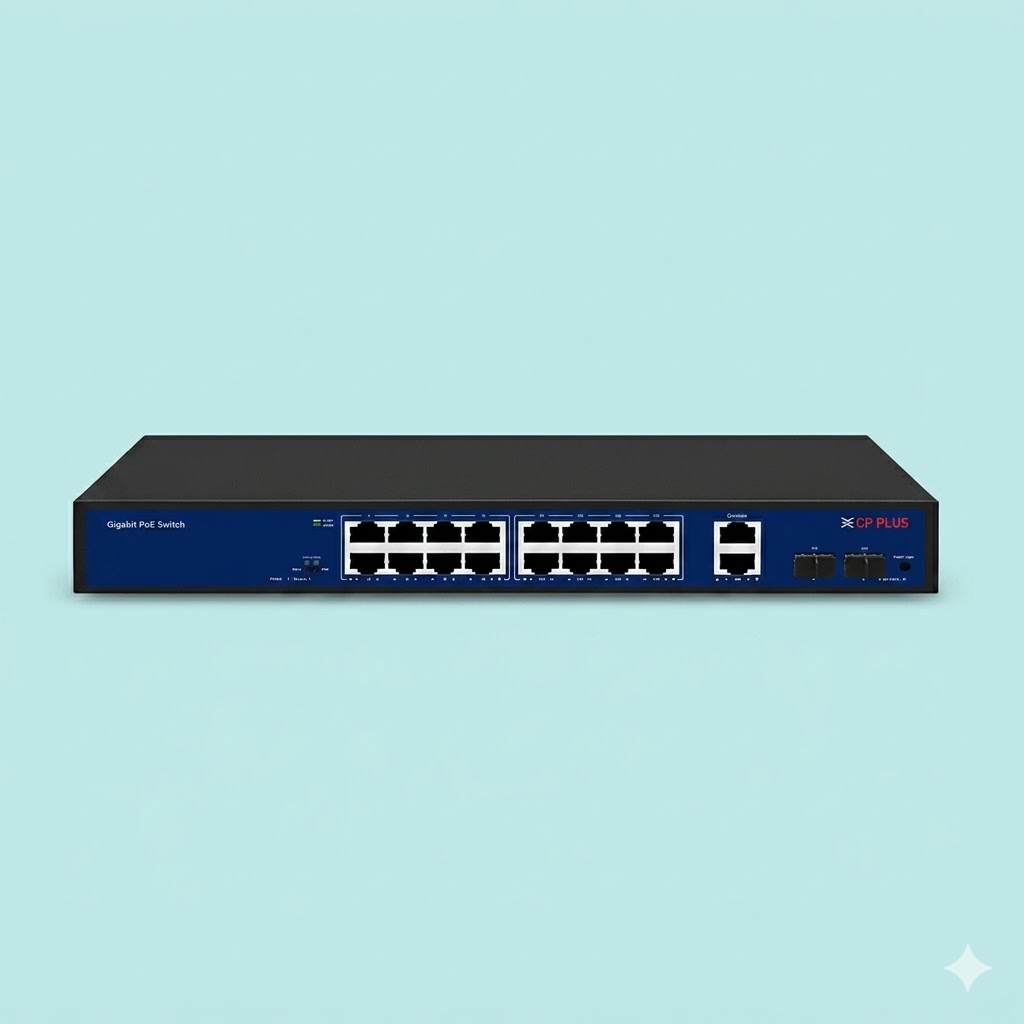

The CP-DNW-GPU16G2F2-20 is a 20-port unmanaged Gigabit PoE (Power over Ethernet) switch from CP PLUS, specifically designed for high-performance security surveillance systems and enterprise networking.
Core Specifications
| Feature | Details |
| Total Ports | 20 Ports |
| PoE Ports | 16 × 10/100/1000 Mbps RJ45 ports |
| Uplink Ports | 2 × 1000 Mbps RJ45 ports + 2 × Gigabit SFP ports |
| PoE Power Budget | 200W total (Up to 30W per port) |
| Switching Capacity | 40 Gbps |
| Transmission | Up to 100m (Standard) / Up to 250m (Extend Mode on ports 9–16) |
Key Highlights
-
Plug-and-Play: As an unmanaged switch, it requires no complex configuration, making it ideal for straightforward CCTV installations.
-
AI PoE Watchdog: This feature automatically detects unresponsive PoE devices (like an IP camera that has frozen) and restarts the power to that specific port to restore the connection.
-
Extended Range: In “Extend Mode,” ports 9–16 can transmit data and power up to 250 meters, though the speed is capped at 10 Mbps for those specific runs.
-
Rugged Protection: It includes 4KV surge protection and ESD protection (8KV air / 6KV contact) to safeguard your network against electrical spikes.
