| Brands | CP Plus |
|---|
-59%
POE Switch

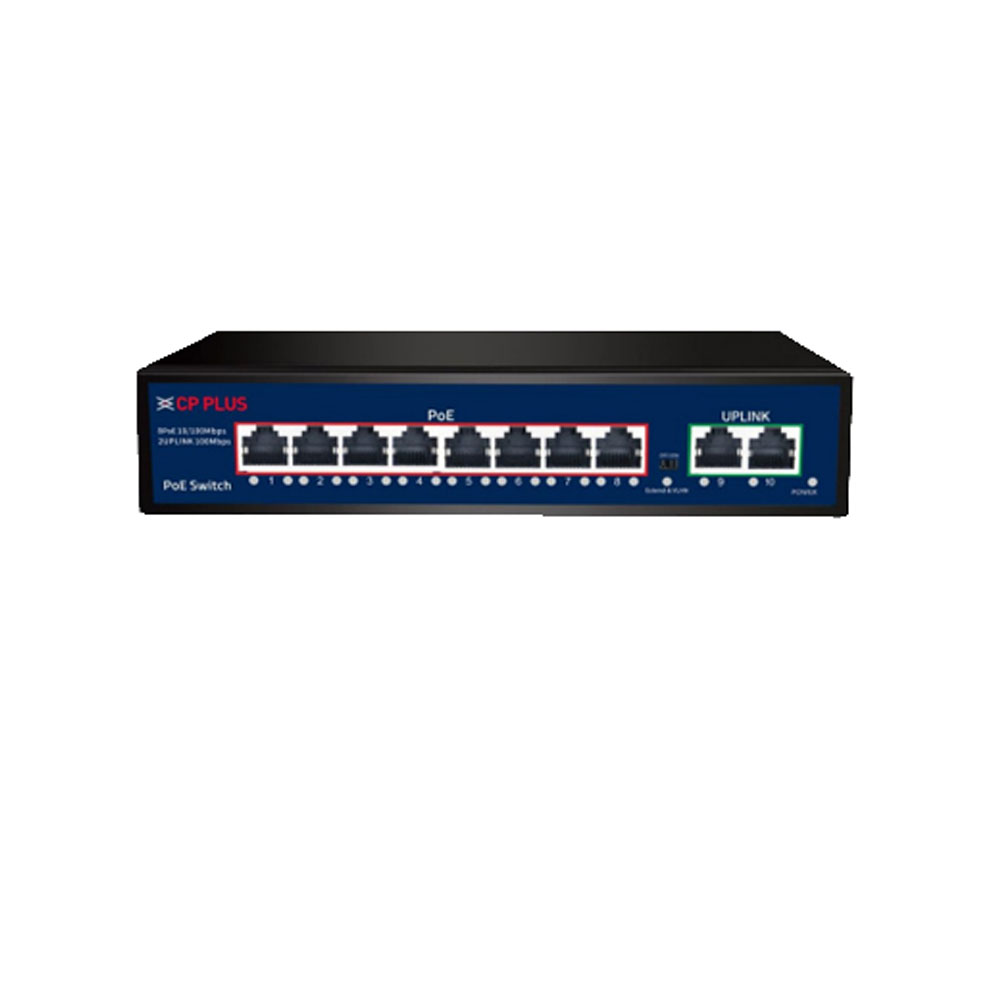

CP Plus POE Switch 8 Port CP-DNW-HP8H2-96-V2
Availability:
1 in stock
- CP Plus POE Switch 8 Port CP-DNW-HP8H2-96-V2
- Item Model No : CP-DNW-HP8H2-96-V2
- CP-DNW-HP8H2-96-V2 8 Port PoE Switch with 2 Uplink Port
- 8 port, 100Mbps, RJ45 ports; 30W Max. Output of Single PoE Port
- Support IEEE802.3i/802.3u/802.3x
- 2 Uplink port, 100Mbps with Transmission distance of 0-100m
- Easy and safe installation
- Functions; Switching Performance : This PoE Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.
- Easy to Use : This PoE Switch is quite easy to install and use. It requires no configuration and installation. With outstanding performance and quality, this PoE Switch is a great selection for expanding your home or workplace network.
- RJ45 Connector : The Registered Jack 45 is the ubiquitous ethernet style data port that is found on switches, routers, and network cards. The RJ45 style connectors and ports are so commonly used that they have become the primary type of port to be used for ethernet networking. It looks similar to a telephone jack, but is slightly wider.
- Supports Full Duplex Mode : The duplex mode makes this Ethernet Switch capable of sending and receiving information at the same time, enabling
bi-directional network data transmissions to save time and money.
7 Days Replacement | Brand Warranty By CP Plus All Over India
₹2,999.00 ₹7,400.00
1 in stock
