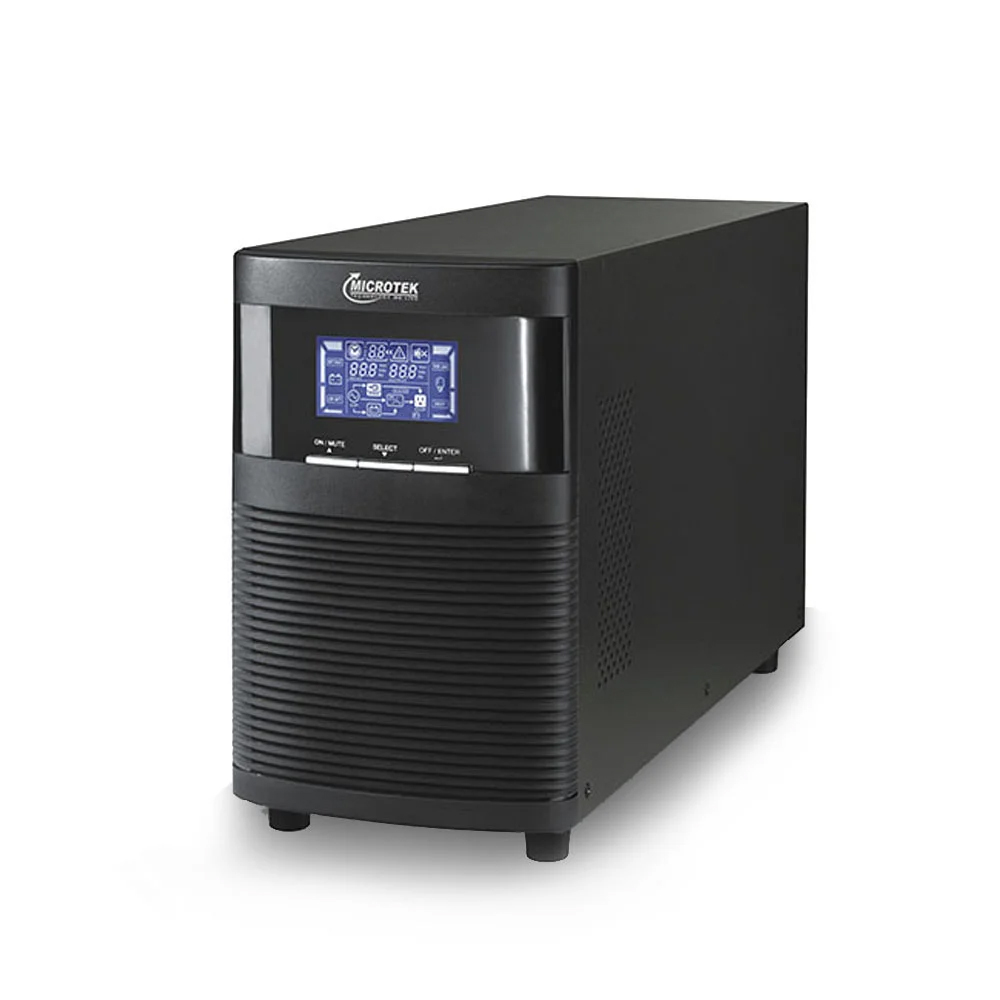

Microtek Online UPS With In-Built Batteries 24V E2 1KVA IB
Availability:
Out of stock
Microtek Online UPS With In-Built Batteries 24V E2 1KVA IB
Item Model Name : ONLINE UPS E²-IB / NM24EM1KK11-IB
Capacity : 1KVA/800V
DC Voltage System : 24 VDC
Rated Capacity : 1 KVA / 800 Watts
Phase: Single Phase In, Single Phase Out
DC Voltage : SMF 12V / 9AH x 2 Nos. (IN-BUILT BATTERIES)
WAVEFORM (Battery Mode) : PURE SINEWAVE
Net Weight : 9.8 KGS.
Input Voltage Range : 110VAC+5% – 300VAC+5% | Output Voltage : 200/ 208/ 220/ 230/ 240VAC
Frequency Range : 40Hz – 70Hz | Frequency Range (Battery Mode) : 50Hz+0.25Hz OR 60Hz+0.3Hz
Transfer Time : AC MODE TO BATTERY MODE 0/ INVERTER TO BYPASS: <4ms (Typical 2.5ms)
SALIENT FEATURES : Inbuilt OVCD (Over Voltage Cut-Off Device) with Surge Protection.
Static Bypass-improves Reliability & Alarm (Optional) for Mute Mode.
Smart LCD Display for Real-time information.
SNMP Card (Optional) on demand.
EMI Noise Filter With Isolation Transformer (Optional).
Efficient Micro Controller based.
Over Temperature Indication & Protection.
Advanced PFC Technology & Generator Compatible.
Robust Product-improves Power Quality with Reliability.
Configurable Output Voltage settings & External Charger up to 8 Amps.
Output Frequency fixed at 50Hz or can synchronized with Input Frequency.
Microtek High Frequency Online UPS provides Uninterrupted Pure Power for Critical Applications such as Computer Network, Servers, Cyber Cafes, and CCTV Camera etc.
7 Days Replacement | Brand Warranty By Microtek All Over India
