| Weight | 924 g |
|---|---|
| Brands | Zebronics |
-71%
Motherboard

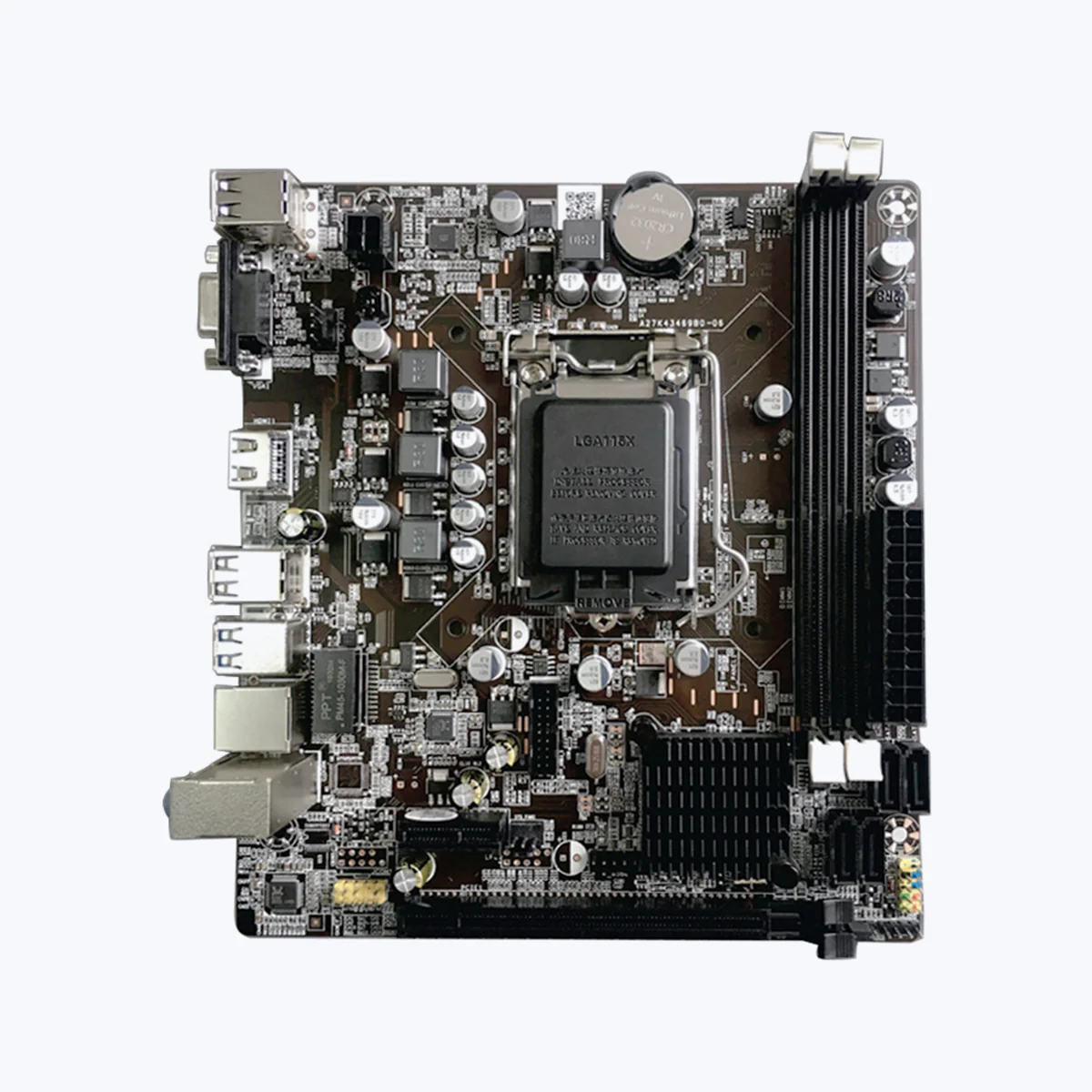

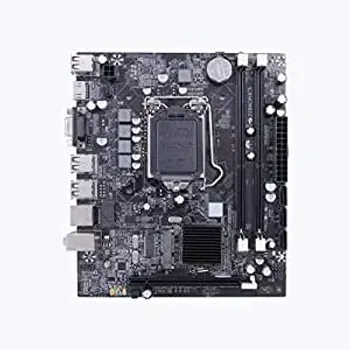

Zebronics Motherboard B75 LGA 1155 Socket
Availability:
1 in stock
The Zebronics Zeb-B75 is a budget-friendly Micro-ATX desktop motherboard designed to breathe new life into older computing setups. It features the Intel B75 Express chipset paired with an LGA 1155 CPU socket, making it explicitly built to support legacy multi-core processors.
- Processor Compatibility: Supports 2nd and 3rd Generation Intel Core i3, i5, and i7 processors, alongside compatible Pentium and Celeron series CPUs.
- Memory Support: Features 2 x DDR3 DIMM slots. It supports a maximum dual-channel capacity of up to 16GB RAM at clock speeds of 1066, 1333, or 1600 MHz.
- Form Factor: Designed in a compact Micro-ATX (M-ATX) layout, ensuring it fits easily into most standard mini and mid-tower computer cabinets.
- Storage & Expansion: Typically offers a mixture of legacy SATA II ports and a high-speed SATA III (6Gb/s) port for modern SSDs, alongside a PCIe x16 graphics slot for dedicated video cards.
- Rear I/O Connectivity: Includes onboard video outputs (VGA and HDMI or DVI depending on the specific revision layout), integrated 6-channel HD audio, an RJ45 Ethernet network port, and dedicated high-speed USB 3.0 ports alongside standard USB 2.0 options.
₹1,099.00 ₹3,799.00
1 in stock
Based on 0 reviews
Be the first to review “Zebronics Motherboard B75 LGA 1155 Socket”
